Trucks

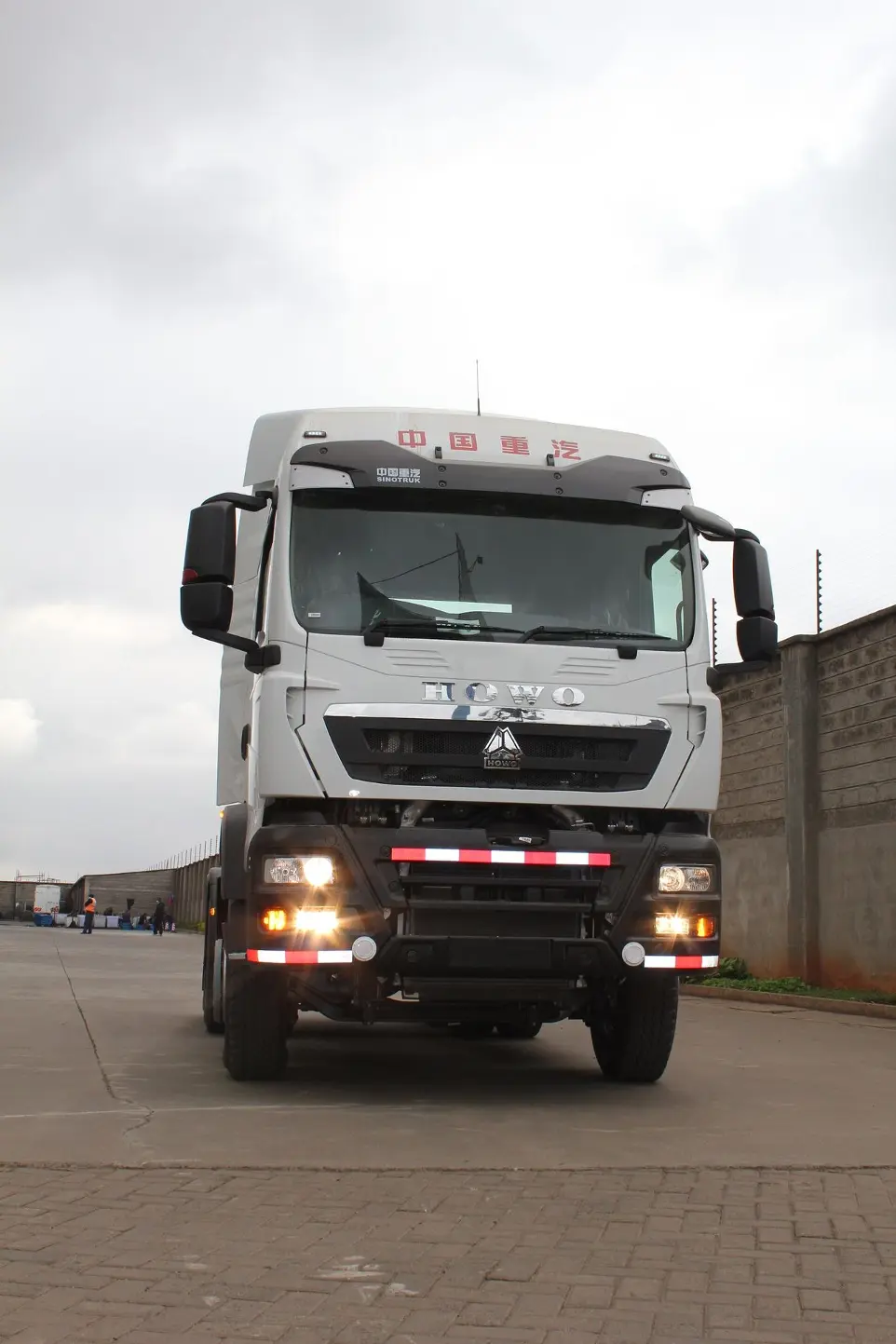

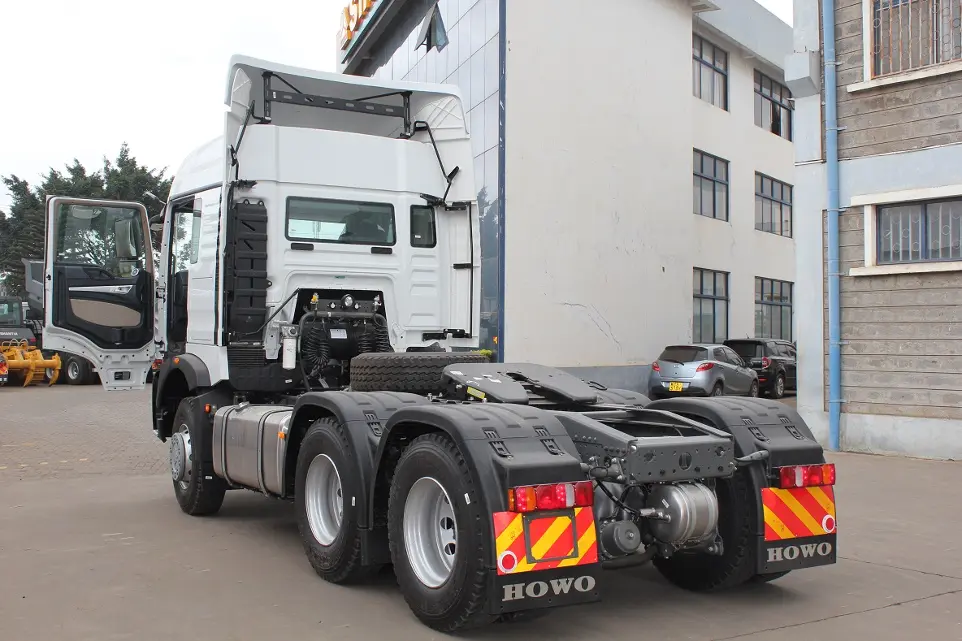

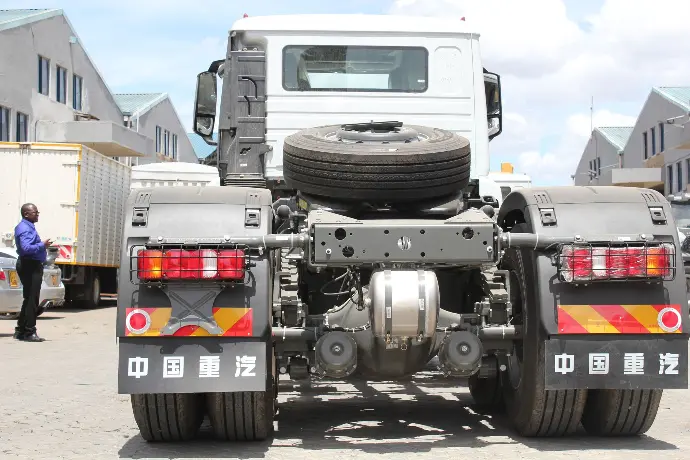

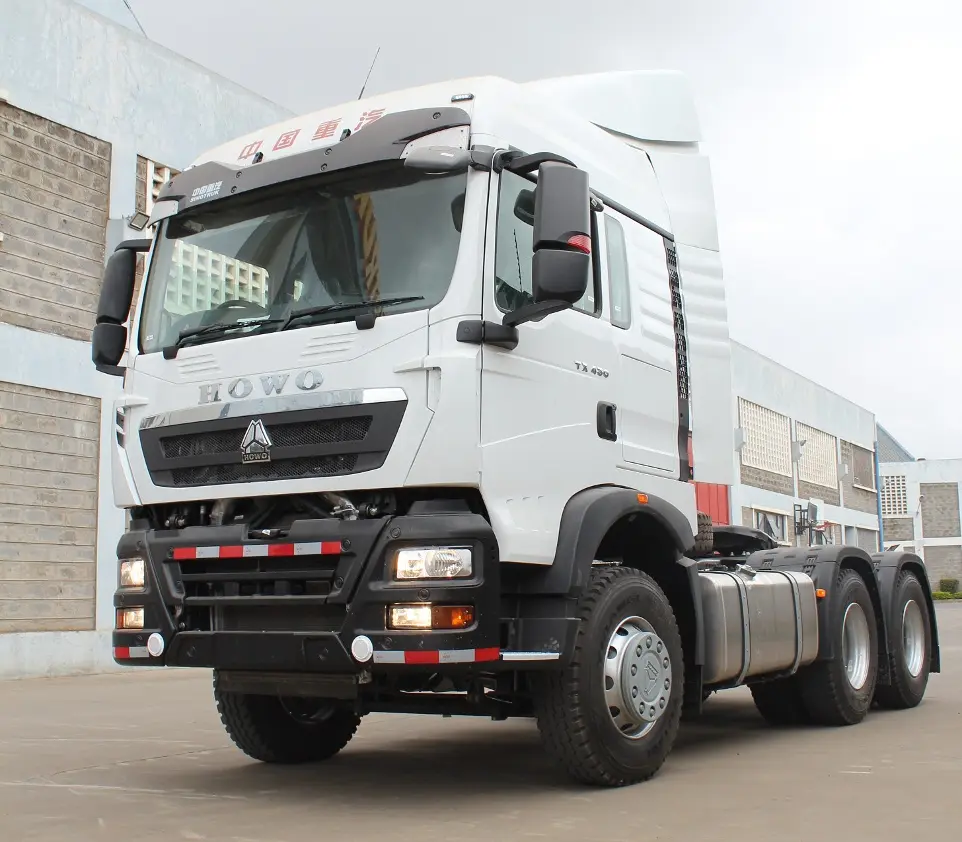

Howo TX Prime Mover
Model ZZ4255N32GCI RHD
Cabin TX-V, high roof, 2 seats with 2 berths, air suspension seat with arm rest
Engine MC11.43-30, 430HP, EURO 3 EMISSION
Transmission: HW25712XSTCL, 12 Forward 2 Reverses, with synchronizer, double counter shafts, bevel gear, with PTO, overdrive, aluminum case
Tires: 315/80R22.5, with one spare tireFront Axles: VGD75S, with Drum brake, SKF bearing, MAN technology
Rear Axles: MCY13BGS, with Drum brake, SKF free maintenance wheel endDouble diff, single reduction axleSteering box:
BOSCH steering, right hand drive
Fifth Wheel: JOST 90#
Fuel tank: 860L
Color: White
HOWO TX-Tipper
Model -ZZ3257V364GB1R
CABIN- TX-F Cab with 1 sleeper,two seats
Engine-WP10.380E33.380HP.EURO11 emission transmission
Tires-12.00r20. with one spare tire
Front Axle- VGD95,with drum brake
Rear Axle-MCX16ZG with drum brake
Steering Box-BOSCH8098,Right hand drive
Fuel Tank-300L
Body-5400*2300*1500mm,bottom 8mm side 6mm
Tare weight-14500kgGVW-35000kg
Make Year-2024
Colour-Red

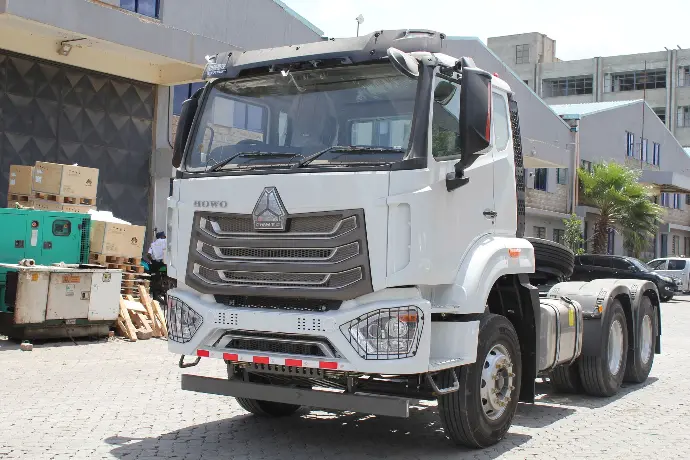

HOWO NX Prime Mover
HOWO-N Prime Mover (Driving type 6×4)
| MODEL | ZZ4257S3241W |
| Engine | Make: SINOTRUK Engine Model: WD615.47, Euro II emission standard4 stroke direct injection diesel engine6 cylinder in-line with water cooling, turbo-charging &intercooling. Maximum output:371HP (273Kw) at 2200rpm according to DIN Maximum torque:1500Nm at 11001600 rpmBore: 126mm Stroke: 130mm; Displacement:9.726L; Compression ratio:17: 1 Specific fuel consumption:195g/kWh; Engine oil filling quantity:23L Cooling system filling quantity (long-term filling):40L Thermostat opening temperature:800C Twin cylinder air compressor Rigid fan Option: Thermostat with 710C opening begin, Visco fan |
| Clutch | Single-plate dry diaphragm spring clutch, diameter 430mm, hydraulically operating with air assistance. |
| Transmission | Transmission, model HW19710 forward and 2 reverse ratio: 1428 10.627.875.88 4.38 3.72 2.43 1.80 1.34 1.00 13.91/3.18(R) Option: HW19710T, HW20716 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | Steering with double T-cross section beam with drum brake system |
| Rear Axle | Pressed axle housing, central single reduction, with differential locks between axles; with drum brake system and Automatic slack adjusterRatio:4.111 Option: 4.44 |
| Chassis | Frame: High-strength U-profile frame with a section of 280X80X8, all cold riveted cross members Front suspension: 2 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers Rear suspension: 12 semi-elliptic leaf springs with bogie spring. Fuel tank;600L capacity with locking fuel cap, fitted to the off side of the chassis Fifth wheel size:3.5-inch Option:2.0 inch Option: front and rear stabilizer; front 2 leaf springs and rear4 leaf springs |
| Steering | Hydraulic steering with power assistance Ratio:22.2-26.2 Option: ZF steering box |
| Brakes | Front and rear drum brake, four-circuit protection valve, Service brake: dual circuit compressed air brake Parking Brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: Engine exhaust Brake Option: ABS |
| Wheel & Tires | Tyre: 12R22.5 tubeless tireRims:9.0-22.510 hole-steel Option: ZF steering box |
| Driver’s cab | High cab, adjustable steering wheel with various heights and angles, central door locks, electric window lifter, power adjustable rearview mirror,2-arm windscreen wiper system with 3 speeds, air suspension adjustable driver*s seat, rigid adjustable co-driver*s seat heating and ventilation system, exterior sun visor, safety belts, air hom and double berth with 4-point support fully floating suspension and air suspension with transverse stabilizer. Option: spring suspension for cab, high bumper, air conditioner power cab lifting. |
| Dimensions in mm | Wheel base 3225+1350 Front Wheel track 2041 Rear Wheel track 1830 Front overhang 1550 Rear overhang 725 Approach Angle 1 7 Departure Angle 46 Overall Dimension 6850X2520X3790 (mm)(3500 with air deflector) |
| Weight in kg | Dead Weight 8300 Permissible loading capacity on chassis 23570 Gross vehicle weight 32000 Gross combination weight 70000 Front Axle loading capacity 6500 Rear Axle loading capacity 13000×2 |
| Performance | Maximum driving speed 102 Maximum gradability 32 Maximum ground clearance 262 Minimum turning circle 18.5 Fuel consumption (L/100km) 40 |
HOWO NX TIPPER
MODEL-ZZ32255N3246C1
Engine - 300HP,Euro 11 Transmission- HW1570L Tires - 315/80r 22.5 11pcs Front Axles-H163 Rear Axles-MCJ11,=5.29 Steering-ZF8098,Right hand drive Fuel Tank-260L with cap lock Body Size-4800*2300*1100, bottom 4;sides 3;Front liftingsystems | |
| |
| |
| |

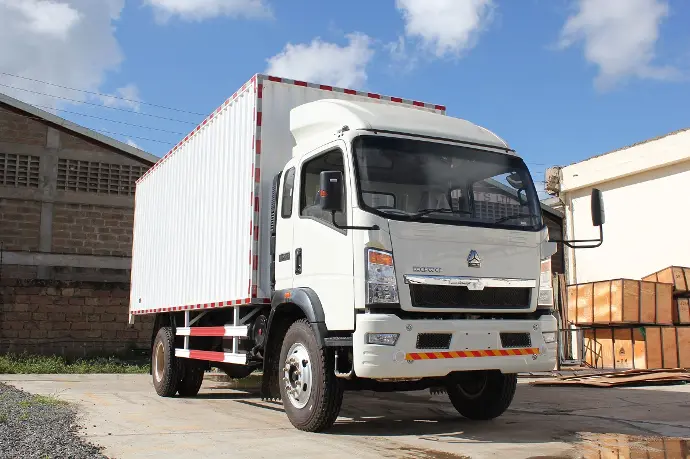

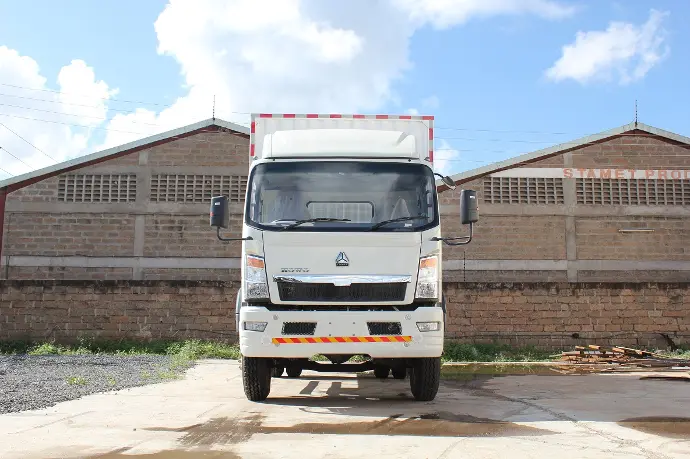

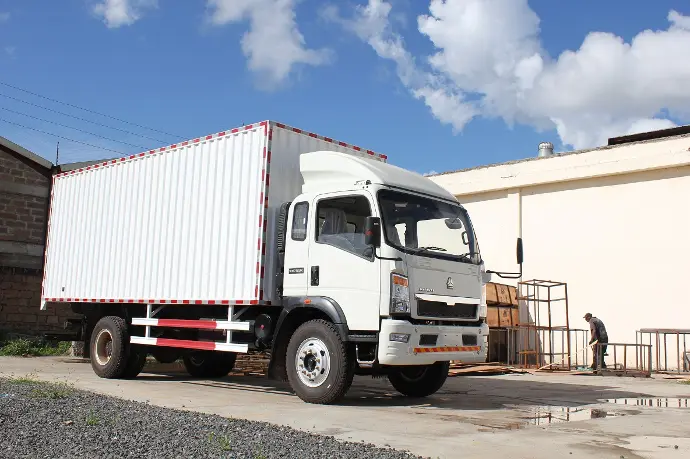

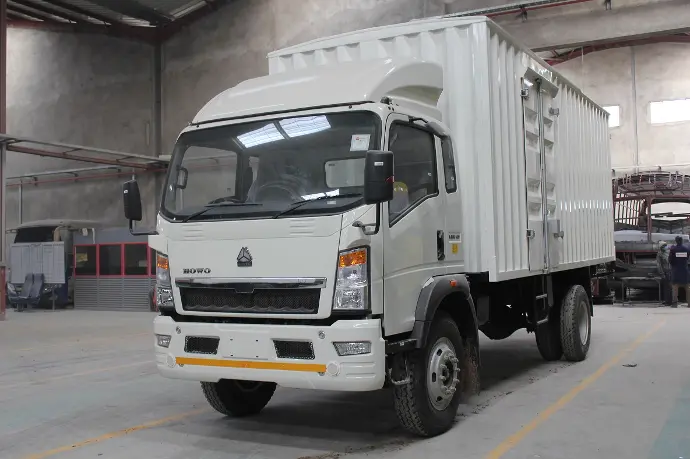

10T LDT (Light-duty trucks)
Chassis | |
Model | ZZ1167G4715D1R |
Dimensions(mm) | 8250*2380*3250 |
Cab | 2080cabin,3seats with 1 berth, with floating coat |
Engine | YC4E160 |
| Rated out Power | 160 |
Driving Type | 4X2 |
Wheelbase(mm) | 4700 |
Tyer | 9.00R20 |
Front axle | 3.6T with Drum Brake |
Drive axle | 10.5T with Drum Brake |
Transmission | DC6J65TC, 6F,1R, with synchronizer |
| 2,Uploading options | |
Body Size (mm) | 6250*2300*2300(2000) |
Complete vehicle kerb weight | 6150kg |
Body structure | Side thickness: 1.5mm, Bottom:3mm Doors openingIn gear and left with fasten rings in the bottom |

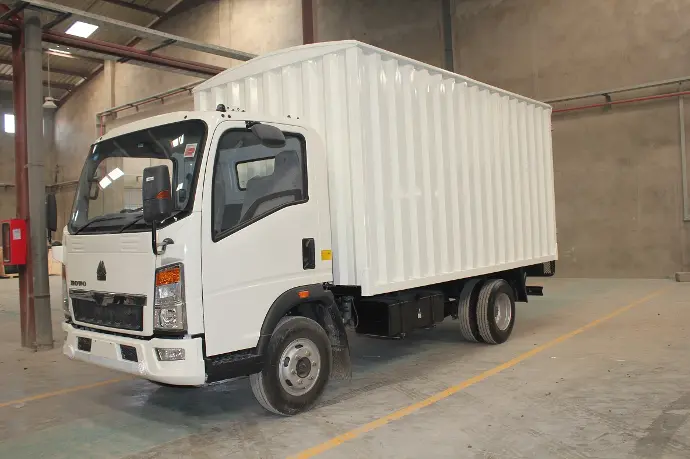

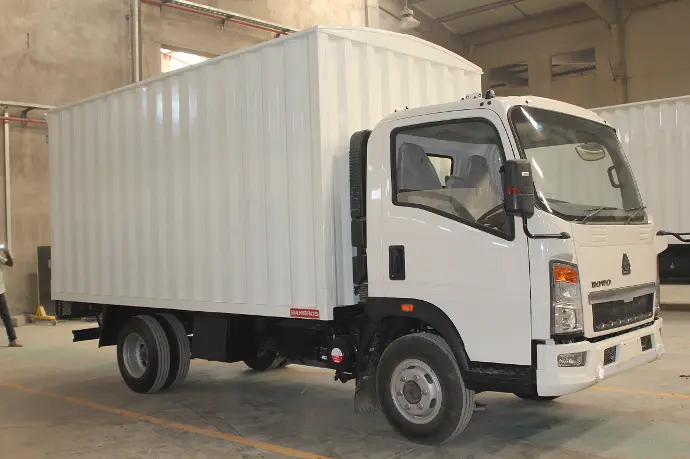

3T LDT (Light-duty truck)
1. Chassis
Z1167G4715D1R
Dimensions(mm) 8250*2380*3250
Cab 2080cabin,3seats with 1 berth, with a floating coat
Engine YC4E160
Rated out Power 160
Driving Type 4X2
Wheelbase(mm) 4700
Tyer 9.00R20
Front axle 3.6T with Drum Brake
Drive axle 10.5T with Drum Brake
Transmission DC6J65TC, 6F,1R, with synchronizer
Body Size (mm): 6250*2300*2300(2000)
Complete vehicle kerb weight: 6150kg
Body structure: Side thickness: 1.5mm, Bottom:3mm Doors opening. In gear and left with fasten rings in the bottom
